alib::lox::loggers::VStudioLogger Class Reference

Description:

A logger that logs to the Visual Studio output pane using OutputDebugString(). The name of the Logger defaults to "VSTUDIO_CONSOLE".

ALox text logger escape sequences (see class ESC) are removed and ignored.

Note

For the ease of use, class Log implements a method Log::AddDebugLogger that tries to create the right Logger type for standard debug logging. If a Visual Studio debug session is detected, this logger is added. If in addition, a windows console application is detected, then a second logger of type WindowsConsoleLogger is added.

Definition at line 28 of file vstudiologger.inl.

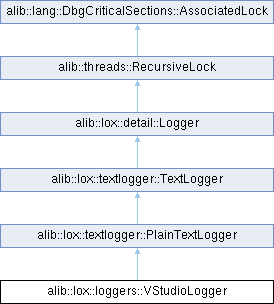

Inheritance diagram for alib::lox::loggers::VStudioLogger:

Public Method Index:
	VStudioLogger (const NString &name=nullptr)
virtual	~VStudioLogger () override
	Destructs a VStudioLogger.
Public Method Index: inherited from alib::lox::textlogger::TextLogger
virtual	~TextLogger () override
	Destructs a TextLogger.
virtual void	ClearReplacements ()
	Removes all pairs of searched strings and their replacement value.
FormatAutoSizes &	GetAutoSizes ()
FormatDateTime &	GetFormatDate ()
FormatMetaInfo &	GetFormatMetaInfo ()
FormatMultiLine &	GetFormatMultiLine ()
FormatOther &	GetFormatOther ()
FormatTimeDiff &	GetFormatTimeDiff ()
Replacements &	GetReplacements ()
virtual void	Log (detail::Domain &domain, Verbosity verbosity, BoxesMA &logables, detail::ScopeInfo &scope) override
virtual void	ResetAutoSizes ()
virtual void	SetReplacement (const String &searched, const String &replacement)
Public Method Index: inherited from alib::lox::detail::Logger
virtual	~Logger () override
	Destructs a logger.
const NString &	GetName () const
const NString &	GetTypeName () const
bool	SetVerbosityExport (Lox *lox, bool value, Priority priority=Priority::Standard)
Public Method Index: inherited from alib::threads::RecursiveLock
void	AcquireRecursive (ALIB_DBG_TAKE_CI)
virtual bool	DCSIsAcquired () const override
virtual bool	DCSIsSharedAcquired () const override
void	ReleaseRecursive (ALIB_DBG_TAKE_CI)
bool	TryAcquire (ALIB_DBG_TAKE_CI)
Public Method Index: inherited from alib::lang::DbgCriticalSections::AssociatedLock
virtual	~AssociatedLock ()
	Virtual Destructor.

Protected Field Index:
AString	outputString
Protected Field Index: inherited from alib::lox::textlogger::TextLogger
strings::util::CalendarDateTime	callerDateTime
AString	logBuf
	The internal log Buffer.
AString	msgBuf
	The buffer for converting the logables.
Variable	varFormatAutoSizes
Variable	varFormatDateTime
Variable	varFormatMetaInfo
Variable	varFormatMultiLine
Variable	varFormatOther
Variable	varFormatTimeDiff
Variable	varReplacements
Protected Field Index: inherited from alib::lox::detail::Logger
NString32	Name
NString32	TypeName
Protected Field Index: inherited from alib::threads::RecursiveLock
std::recursive_mutex	mutex

Protected Method Index:
virtual void	AcknowledgeLox (detail::LoxImpl *lox, lang::ContainerOp op) override
virtual integer	logPlainTextPart (const String &buffer, integer start, integer length)
virtual void	notifyMultiLineOp (lang::Phase)
	Empty implementation, not needed for this class.
virtual bool	notifyPlainTextLogOp (lang::Phase phase)
Protected Method Index: inherited from alib::lox::textlogger::PlainTextLogger
	PlainTextLogger (const NString &name, const NString &typeName)
virtual	~PlainTextLogger () override
	Destructs a MemoryLogger.
virtual void	logText (detail::Domain &domain, Verbosity verbosity, AString &msg, detail::ScopeInfo &scope, int lineNumber, bool isRecursion) override
Protected Method Index: inherited from alib::lox::textlogger::TextLogger
	TextLogger (const NString &pName, const NString &typeName)
virtual void	processVariable (const NString &domainPath, Verbosity verbosity, detail::ScopeInfo &scope, AString &dest, Substring &variable)
virtual void	writeMetaInfo (AString &buffer, detail::Domain &domain, Verbosity verbosity, detail::ScopeInfo &scope)
virtual void	writeTimeDiff (AString &buffer, int64_t diffNanos)
Protected Method Index: inherited from alib::lox::detail::Logger
	Logger (const NString &name, const NString &typeName)

Additional Inherited Members
Public Field Index: inherited from alib::lox::textlogger::PlainTextLogger
bool	PruneESCSequences =true
Public Field Index: inherited from alib::lox::textlogger::TextLogger
ObjectConverter *	Converter = nullptr
TickConverter	DateConverter
bool	FormatWarningOnce =false
Public Field Index: inherited from alib::lox::detail::Logger
integer	CntLogs =0
time::Ticks	TimeOfCreation
	The creation time of the Logger.
time::Ticks	TimeOfLastLog
	Timestamp of the last log operation.
Public Field Index: inherited from alib::threads::RecursiveLock
DbgLockAsserter	Dbg
	The debug tool instance.

Field Details:

outputString

AString alib::lox::loggers::VStudioLogger::outputString

protected

A character buffer used for the creation of zero-terminated output strings required by the VStudio logger interface.

If ALIB_CHARACTERS_WIDE is set, this string also acts as a converter to wide characters.

Definition at line 39 of file vstudiologger.inl.

Constructor(s) / Destructor Details:

VStudioLogger()

VStudioLogger::VStudioLogger ( const NString & name = nullptr )

explicit

Creates a VStudioLogger.

Parameters

name	(Optional) The name of the Logger, defaults to "VSTUDIO_CONSOLE".

Definition at line 42 of file vstudiologger.cpp.

~VStudioLogger()

virtual alib::lox::loggers::VStudioLogger::~VStudioLogger ( )

inlineoverridevirtual

Destructs a VStudioLogger.

Definition at line 51 of file vstudiologger.inl.

Method Details:

AcknowledgeLox()

void VStudioLogger::AcknowledgeLox ( detail::LoxImpl * lox, lang::ContainerOp op )

overrideprotectedvirtual

Invokes parent method. Then performs some VStudio-related adoptions.

Parameters

lox	The Lox to acknowledge insertion or removal
op	The operation. Either ContainerOp::Insert or ContainerOp::Remove.

Reimplemented from alib::lox::textlogger::TextLogger.

Definition at line 49 of file vstudiologger.cpp.

logPlainTextPart()

integer VStudioLogger::logPlainTextPart ( const String & buffer, integer start, integer length )

protectedvirtual

Write the given region of the given AString to the destination buffer.

Parameters

buffer	The string to write a portion of.
start	The start of the portion in buffer to write out.
length	The length of the portion in buffer to write out.

Returns

The number of characters written, -1 on error.

Implements alib::lox::textlogger::PlainTextLogger.

Definition at line 66 of file vstudiologger.cpp.

notifyMultiLineOp()

virtual void alib::lox::loggers::VStudioLogger::notifyMultiLineOp ( lang::Phase )

inlineprotectedvirtual

Empty implementation, not needed for this class.

Implements alib::lox::textlogger::TextLogger.

Definition at line 83 of file vstudiologger.inl.

notifyPlainTextLogOp()

bool VStudioLogger::notifyPlainTextLogOp ( lang::Phase phase )

protectedvirtual

Start a new log line. Appends a new-line character sequence to previously logged lines.

Parameters

phase

Indicates the beginning or end of a log operation.

Returns

Always returns true.

Implements alib::lox::textlogger::PlainTextLogger.

Definition at line 59 of file vstudiologger.cpp.

---

The documentation for this class was generated from the following files:

• vstudiologger.inl
• vstudiologger.cpp
